This notes is for the course Kuberenetes for absolute beginners

Kubernetes service enable communication between various components within or ourside of the application. Kubernetes Services helps us connect applications with other applications or users.
Services enable connectivity between the group of pods. For example front-end to the users, connection between the frontend and backend processes and backend to to external data source.
Services enable Loose coupling between micro services in our application.

Node Port

One of the use case of Nodeport is to listen to a port on the Node and forward requests on that port to a port on the pod running the web application.
This type of service is know as NodePort service because the service listens to a port on the Node and forwards requests to Pods.
NodePorts can only be in a valid range which is from 30000 to 32767.

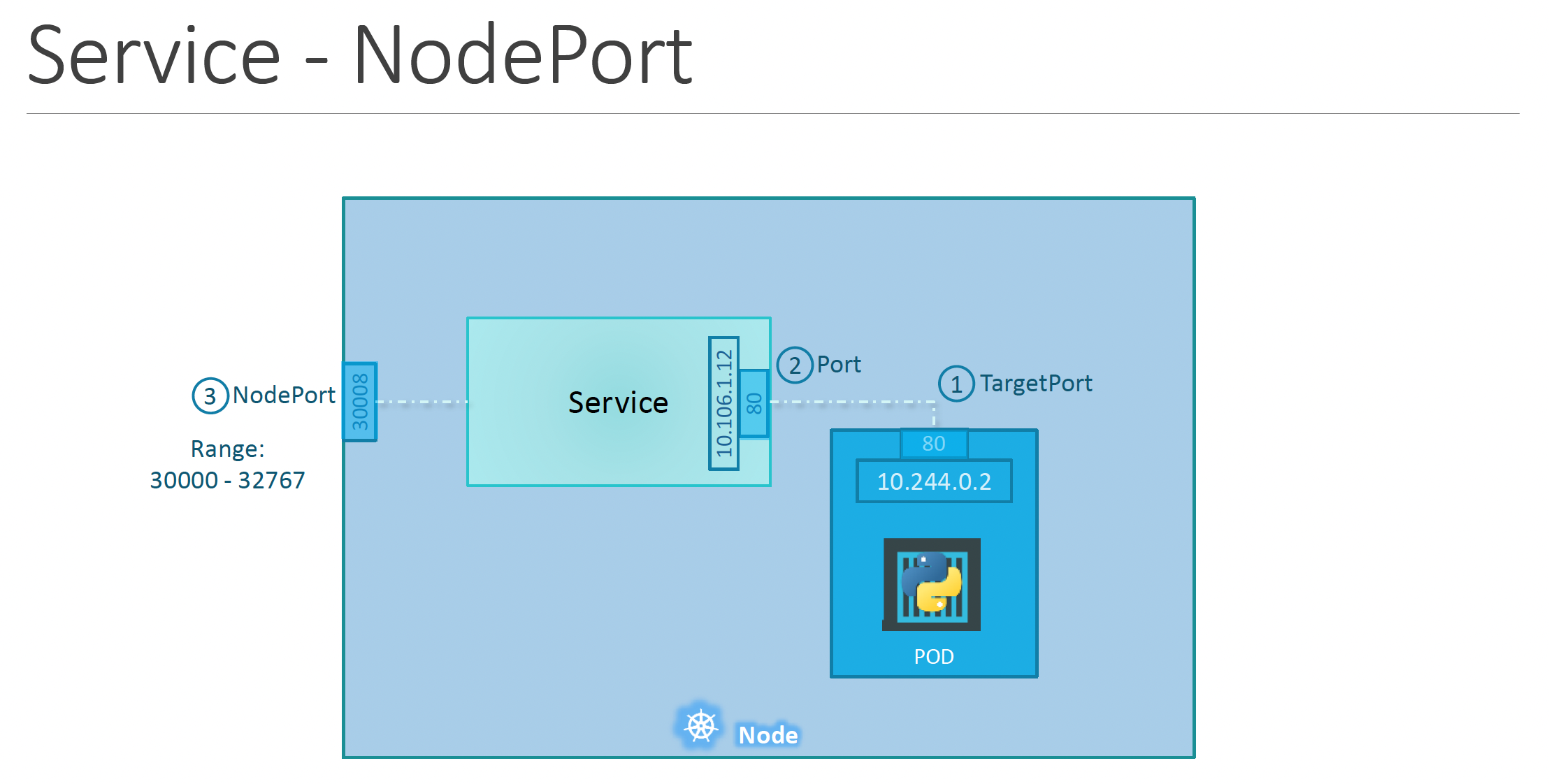

1. TargetPort - The port on the Pod where the actual web server is running - (port 80). This is where the service forwards requests to.
2. Port - Port on the service itself. (Simply referred to as the port).
3. NodePort - Port on the node, which can be used to access the web server externally.

apiVersion: v1
kind: Service
metadata:
  name: spring-boot-service
  namespace: spring-boot
spec:
  selector:
    app: spring-boot-deployment
  ports:
    - port: 8080
      targetPort: 8080
      nodePort: 30009
  type: NodePort

Here the only mandatory field is port. The target port would be the same as port if not specified and nodePort value will be between the 30000 and 32767 range (automatically allocated if not specified).

We can do multiple port mappings within a single service.

Labels and selectors are used to map the pods to the service. When a service is created it looks for matching pods with the labels and finds 3 of them. The service then auto selects all 3 pods to forward the external requests coming from the user. No additional configuration is needed to make this happen.

This service acts as a built in load balancer to distribute the load across different pods.

Kubernetes creates a service that can spans across all the nodes in the cluster and maps the target port to the same nodeport on all the nodes in the cluster, without having to do any additional configurations.
This way the application can be accessed using the IP of any node by using the same port number.

To summarize – in ANY case whether it be a single pod in a single node, multiple pods on a single node, multiple pods on multiple nodes, the service is created exactly the same without having to do any additional steps during the service creation.
When PODs are removed or added the service is automatically updated making it highly flexible and adaptive. Once created, you won’t typically have to make any additional configuration changes.

ClusterIP

ClusterIP provides a single interface to access pods in a group. A service created for back-end pods will help group all the back-end pods and provide a single interface for the other pods to access this service, allowing to easily and effectively deploy a micro-services based application on a Kubernetes cluster. Similarly, creating additional services for database layer allows the back-end pods to access the database layer through this service.

Each service gets an IP and name assigned to it inside the cluster and that is the name that should be used by the other pods to access the service. This type of service is known as ClusterIP. ClusterIP is the default type in kubernetes configuration. If we did not specify the type, ClusterIP would be assigned by default.

apiVersion: v1
kind: Service
metadata:
  name: back-end
spec:
  type: ClusterIP
  ports:
    - targetPort: 80
      port: 80
  selector:
    app: myapp
    type: back-end

LoadBalancer

Exposes the Service externally using a cloud provider’s load balancer.
On cloud providers which support external load balancers, setting the type field to LoadBalancer provisions a load balancer for your Service.

apiVersion: v1
kind: Service
metadata:
  name: my-service
spec:
  selector:
    app.kubernetes.io/name: MyApp
  ports:
    - protocol: TCP
      port: 80
      targetPort: 9376
  clusterIP: 10.0.171.239
  type: LoadBalancer
status:
  loadBalancer:
    ingress:
    - ip: 192.0.2.127

Differrence between different services

https://stackoverflow.com/questions/41509439/whats-the-difference-between-clusterip-nodeport-and-loadbalancer-service-types

Excerpts from the above stack overflow link

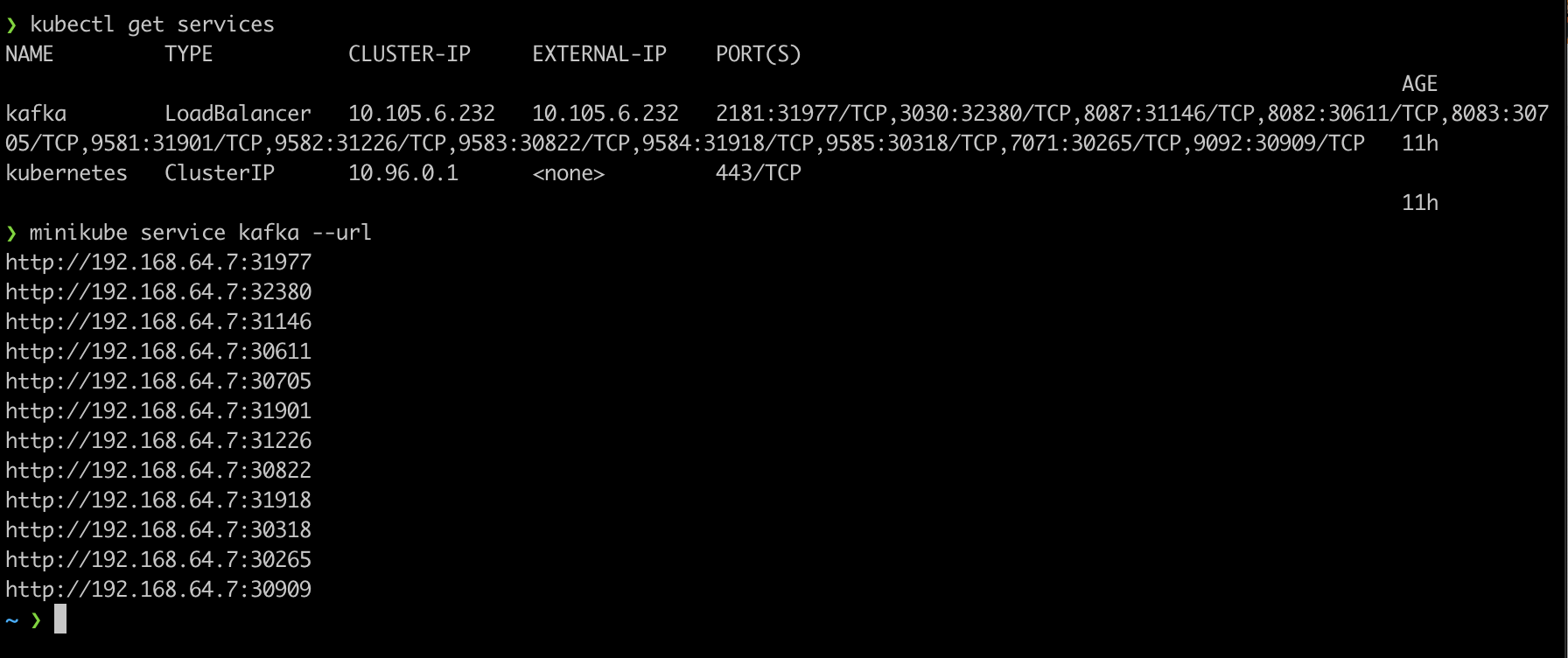

kubectl get services displays the loadbalancer as well as cluster-ip
minikube service redis-service --url displays the node-ports.

If you want to access the service from outside a cluster only Nodeport will be accessible and not clusterIP.

Additional reference: https://stackoverflow.com/a/72988866
